VLMS
Valve Leak Monitoring System
Foreign materials between the valve body and seat surface, damage from frequent valve operation, or cracks in the valve body, seat, stem, packing, or weld joints can cause valve leakage.
This system uses high-sensitivity acoustic sensors to monitor such leaks in real time, providing early leak information to prevent valve damage and improve efficiency through leak prevention.
| Acoustic Emission Sensor |
Operating Temperature: -65℃ ~ 175℃ |
|---|---|
| Pre-Amplifier |
Input Impedance: 1 GΩ Operating Voltage: +15 VDC |
| Data Acquisition & Analysis System |
AD Converter Signal Status Card |
| Input / Output Unit |
Analog I/O Card Digital I/O Card |
Features
- Analyzes background noise to determine leak occurrence
- No need for cooling air supply
- Easy installation and maintenance with clamp-type design
- Real-time spectrum analysis and data storage available
- Valve map display function

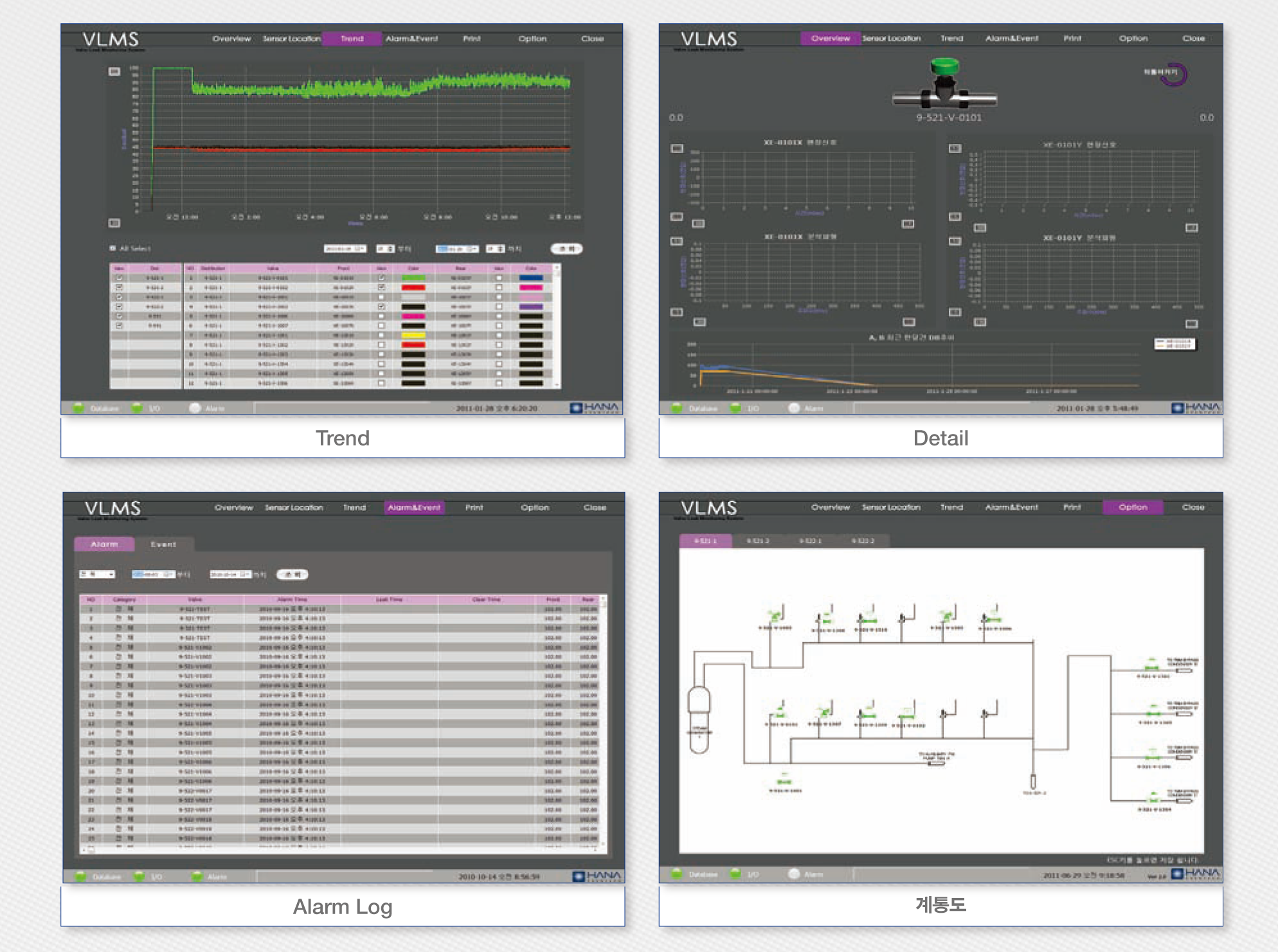

Software
- Warning and alarm functions for leak detection
- Report generation available
- Acoustic comparison function between the upstream and downstream sides of the valve
