RMRT
Remote Insulation Resistance Measurement System

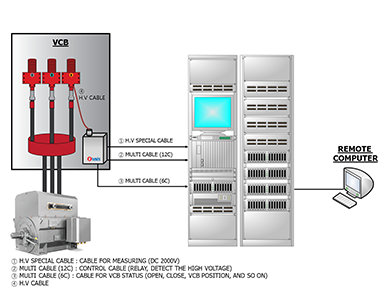

When measuring insulation resistance manually before motor startup, repeated circuit breaker withdrawals can cause contact gaps, leading to increased contact resistance and possible damage. In addition, there is a risk of electric shock due to human error. To prevent these issues, this system enables remote measurement of insulation resistance, fault prediction, and history management, thereby improving equipment reliability and preventing human accidents.
| Signal Processing Module |
Measurement Voltage: 2 kV Measurement Range: 2 GΩ |
|---|---|
| Relay Box |
Applicable Motor Voltage: 4.16 kV – 13.8 kV (up to 20 kV)> Withstand Voltage: up to 35 kV |
Features
- THREE PROTECTION SYSTEM
-
1) Primary Protection
- Interlock control for dual relay operating power
2) Secondary Protencion (Hardware)
- Dual realy operates by condition of C/B(Open/close),
residual voltage by noncontact detiontion
3) Tertiary protection
- Measurable signal transmit to S/W by condition of C/B(Open/close)
- MEASUREMENT SEQUENCE
-
1) confirmation of the residual voltage
2) Confirmation of Dual relay soundness
3) Apply 2kV/5kV voltage and measure

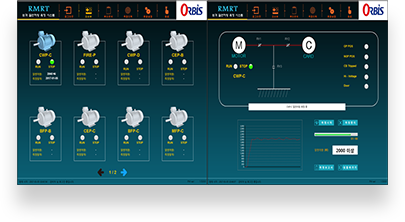

Software
- Displays a list of circuit breakers registered in the database
- Shows user connection information and menu icons
- Displays events and error messages that occur during operation
- Indicates the conduction (ON/OFF) status of each circuit breaker
- Enhanced security with password protection
- Provides trend analysis and history management
